APPLICATION
TECHNICAL SPECIFICATIONS
| Product code | Mechanical connection type | Cross section of aerial bundled cable’s messenger (mm2) | Messenger type |
| DCL19 | Wire | 16-35 | Steel |
| Aluminium | |||
| DCL20 | Wire | 50-70 | Steel |
| Aluminium |

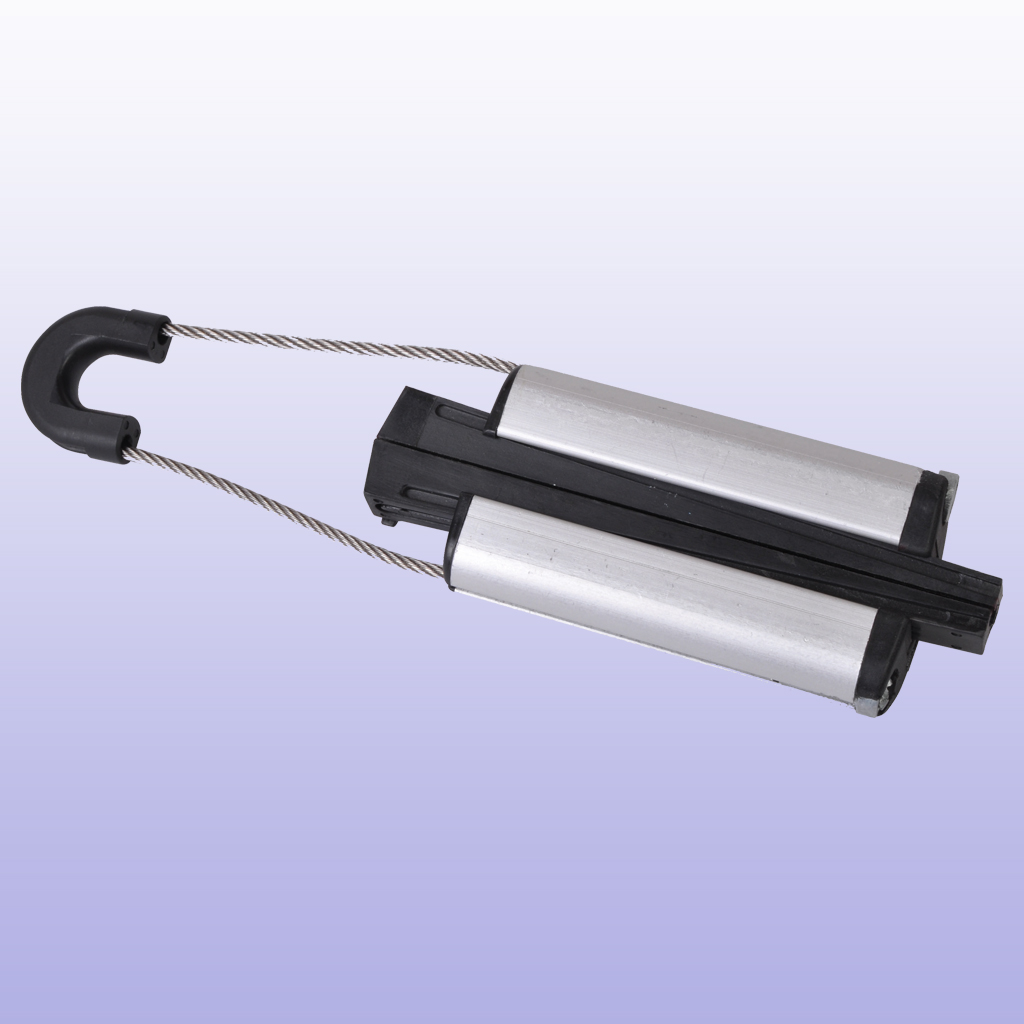

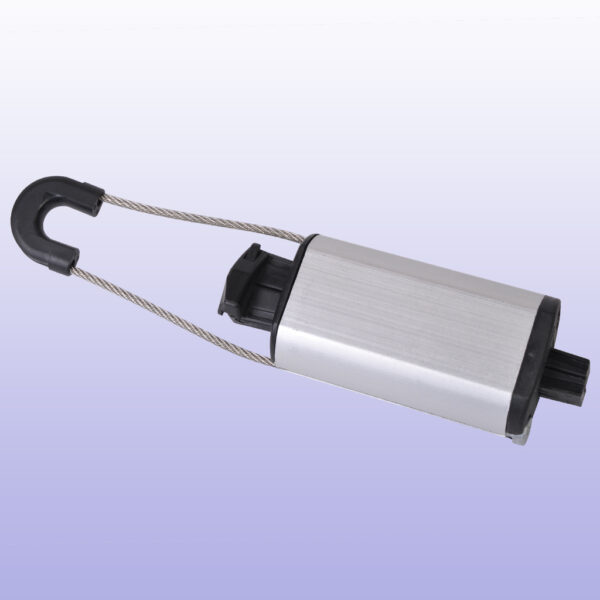

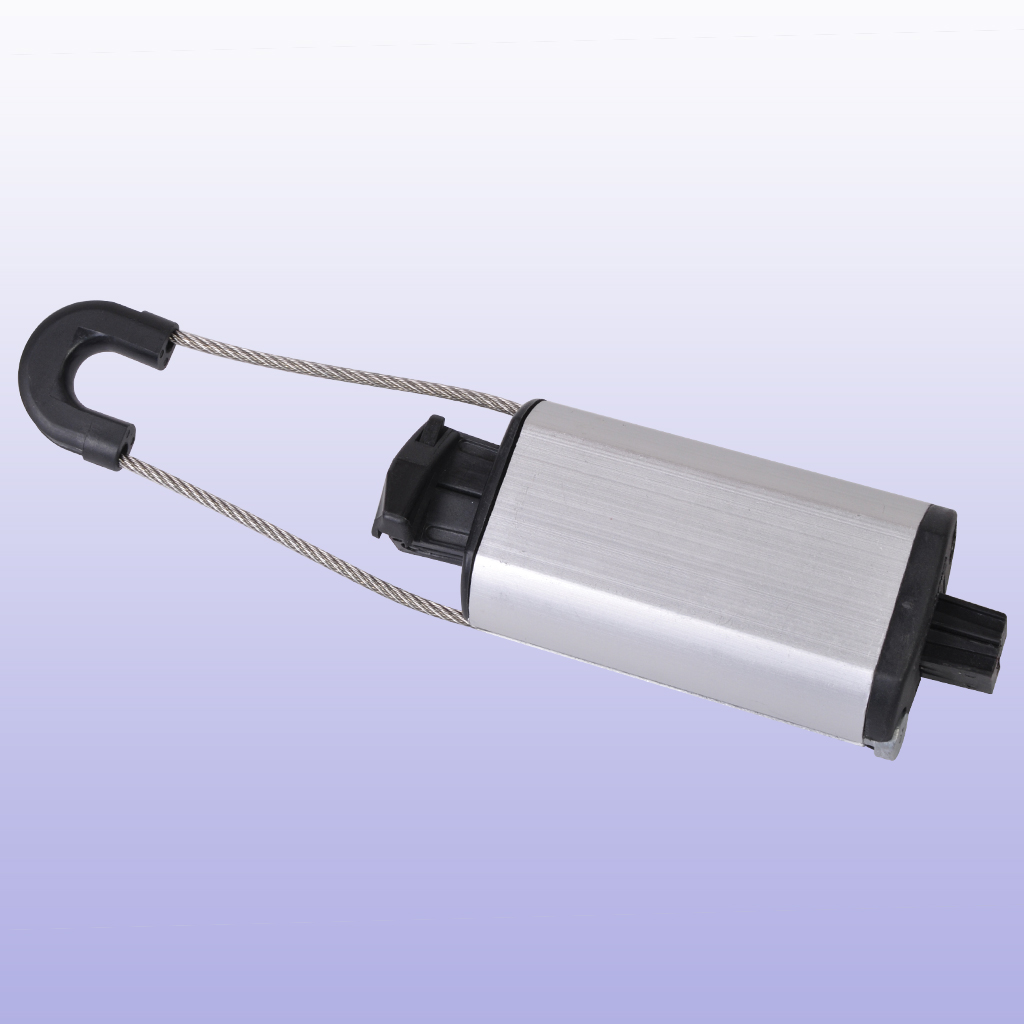

PARTS AND COMPONENTS
| Body | Integrated extruded aluminum with a special alloy to increase tensile strength |
| Wedge | Including two tongue and groove parts which slides within the body and is made of UV resistant fiber reinforced polyamide. |
| Wire rope or wire | Made of galvanized steel which has a very high tensile strength. The wire rope is secured to the dead end clamp body by rivets. Also, the plastic protector is located in the center of the wire rope arc, so that it can give more lifetime and strength to the clamp at the connection point of the wire rope to the pigtail bolt hook.
The wire rope is made of steel with dichromate coating to prevent rusting in the humid regions (e.g. North and South Iran). |
First, pull the clamp wedges out from inside the body so that the relevant messenger can be inserted inside. Then push the wedges back into the body. Now, depending on the type of clamp restraint, which is a wire rope or wire, attach the restraint to the pigtail bolt. For the wire rope, it is necessary to connect the pigtail bolt in the plastic place of the wire rope.
30 PCS/CTN
